Contact Display Know-how – Definition, Working, Varieties & Functions

Contact display expertise is the direct manipulation kind gesture based mostly expertise. Direct manipulation is the power to control digital world inside a display. A Contact display is an digital visible show able to detecting and finding a contact over its show space. That is usually refers to touching the show of the system with a finger or hand. This expertise most generally utilized in computer systems, consumer interactive machines, good telephones, tablets and so forth to exchange most features of the mouse and keyboard.

Contact display expertise has been round for a variety of years however superior contact display expertise has come on in leaps and bounds just lately. Firms are together with this expertise into extra of their merchandise. The three commonest contact display applied sciences embody resistive, capacitive and SAW (floor acoustic wave). Most of low finish contact display units comprise on a normal printed circuit plug-in board and are used on SPI protocol. The system has two components, particularly; hardware and software program. The hardware structure consists of a stand-alone embedded system utilizing an  Eight-bit microcontroller,  a number of kind of interface and driver circuits. The system software program driver is developed utilizing an interactive C programming language.

Kinds of Contact Display Know-how:

The Contact display is a 2-dimensional sensing system made of two sheets of fabric separated by spacers. There are 4 essential contact display applied sciences: Resistive, Capacitive, Floor Acoustical wave (SAW) and infrared (IR).

Resistive:

Resistive contact display consists of a versatile high layer manufactured from polythene and a inflexible backside layer manufactured from glass separated by insulating dots, hooked up to a contact display controller. Resistive contact display panels are extra inexpensive however providing solely 75% of sunshine monitor and the layer could be broken by sharp objects. Resistive contact display is additional divided into Four-, 5-, 6-, 7-, Eight- wired resistive contact display. The development design of all these modules is comparable however there’s a main distinction in every of its technique to find out the coordinates of contact.

Capacitive:

A capacitive contact display panel is coated with a cloth that shops electrical prices. The capacitive techniques can transmit as much as 90% of sunshine from the monitor. It’s divided into two classes. In Floor-capacitive expertise just one facet of the insulator is coated with a conducting layer.

At any time when a human finger touches the display, conduction of electrical prices happens over the uncoated layer which ends up in the formation of dynamic capacitor. The controller then detects the place of contact by measuring the change in capacitance on the 4 corners of the display.

In projected capacitive expertise, the conductive layer (Indium Tin Oxide) is etched to type a grid of a number of horizontal and vertical electrodes. It includes sensing alongside each the X and Y axis utilizing clearly etched ITO sample. For rising the accuracy of the system, the projective display accommodates a sensor at each interplay of the row and column.

Infrared:

In infrared contact display expertise, an array of X and Y axis is fitted with pairs of IR Leds and photograph detectors. Photograph detectors will detect any picture within the sample of sunshine emitted by the Leds at any time when the consumer touches the display.

Floor Acoustic wave:

The floor acoustic wave expertise accommodates two transducers positioned alongside X-axis and Y-axis of the monitor’s glass plate together with some reflectors. When the display is touched, the waves are absorbed and a contact is detected at that time. These reflectors replicate all electrical alerts despatched from one transducer to a different. This expertise supplies wonderful by way of put and high quality.

Elements and dealing of contact display:

operation when using the touch screen panel
operation when utilizing the contact display panel

A fundamental contact display is having a contact sensor, a controller, and a software program driver as three essential parts. The contact display is required to be mixed with a show and a PC to make a contact display system.

Contact sensor:

The sensor usually has an electrical present or sign going by way of it and touching the display causes a change within the sign. This modification is used to find out the situation of the contact of the display.

Controller:

A controller might be linked between contact sensor and PC. It takes data from sensor and interprets it for understanding of PC. The controller determines what kind of connection is required.

Software program driver:

It permits pc and contact display to work collectively. It tells OS how you can work together the contact occasion data that’s despatched from the controller.

Software – Distant management utilizing Contact display expertise:

Controlling of vehicles and robots using touch screen based remote
Controlling of autos and robots utilizing contact display based mostly distant

The contact display is likely one of the easiest PC interfaces to make use of, for bigger variety of purposes. A contact display is helpful for simply accessing the data by merely touching the show display. The contact display system system is helpful in starting from industrial course of management to house automation.

Touch-screen-cir
Picture Supply – Edgefx Kits

In actual time by merely touching the contact display and with a graphical interface, everybody can monitor and management advanced operations.

Touch-screen-circuit
Picture Supply – Edgefx Kits

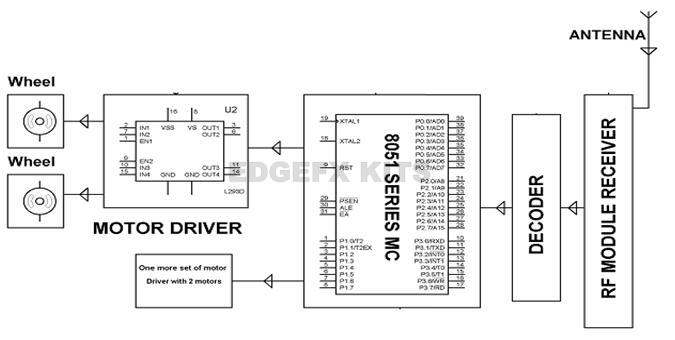

On the transmission finish utilizing a contact display management unit, some instructions will ship to the robotic for transferring into a particular route like ahead, backward, rotating left and rotating proper. On the receiving finish 4 motors are interfaced with the microcontroller. Two of them might be used for Arm and grip motion of the robotic and different two are used for physique motion.

Some distant operations could be executed with contact display expertise utilizing wi-fi communication for answering calls, finding and speaking with employees, and working autos and robots. For this function RF communication or infrared communication could also be used.

An actual time Software: Controlling house home equipment utilizing Contact Display Know-how

It’s potential to regulate home equipment at house utilizing contact display expertise. The entire system works by sending enter instructions from the contact display panel by way of the RF communication that are acquired on the receiver finish and management the switching of masses.

On the transmitter finish, a contact display panel is interfaced to the Microcontroller by way of a contact display connector. When an space on the panel is touched, the x and y coordinates of that space are despatched to the Microcontroller which generates a binary code from the enter.

This Four bit binary knowledge is given to the info pins of the H12E encoder which develops a serial output. This serial output is now despatched utilizing a RF module and an antenna.

On the receiver finish, the RF module receives the coded serial knowledge, demodulates it and this serial knowledge is given to the H12D decoder. This decoder converts this serial knowledge into the parallel knowledge which pertains to the unique knowledge despatched by the microcontroller at transmission finish. The microcontroller on the receiver finish receiver finish, receives this knowledge and accordingly sends a low logic sign to the corresponding optoisolator which in flip switches on the respective TRIAC to permit AC present to the load and the respective load is switched on.
